MYLAPS RC4
[Kode : AMB10R120]
Rp.1.475.810

MYLAPS RC4

100% Original

Note : Bisa pilih nomor

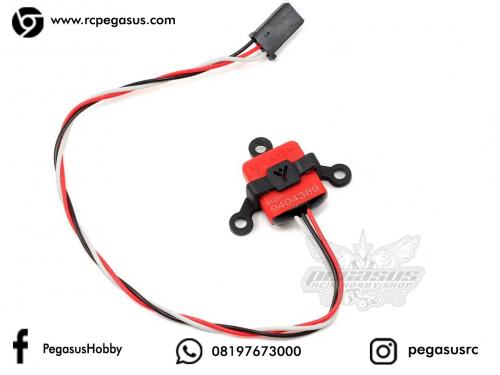

This is the MYLAPS RC4 "3-Wire" Direct Powered Personal Transponder. In R/C racing, details matter. The slightest change or modification can be the difference between making the box, or being a back marker. So MYLAPS developed the next generation RC4 3-Wire transponder to do more than just count your laps. The RC4 3-Wire provides the user with telemetry data such as lap times, connected voltage and ambient car temperature, information that can be used to shave seconds off your overall times. RC4 transponders are compatible with RC4 timing systems can be used for both indoor and outdoor on-road and off-road racing and will perform on just about any surface.
The Standard in RC Timing!Each transponder comes with a unique number linking your car to you as its driver. You can get more than one transponder with the same personal number, or even pick your own lucky number. Note: Car ID & Custom RC4 transponders are individually made and delivery could take up to 4 weeks.

Specifications:

Max Speed: 120 km/h (75 mph)

Temperature Range: 0 - 50C (32 - 122F)

Dimensions: 16x19x6mm (0.7x0.8x0.2")

Weight (Including Holder): 4.7g

Operating Voltage: 3.0 - 16 VDC

Humidity: Max. 90% relative

Signal Transfer: Magnetic induction

Code Resolution: 1.5 ms

Power: Feed from free receiver channel (ch3 or batt)

Connection Plug: Connect using a standard Servo plug

Power Consumption: 14mA @ 6 VDC

Wire Insulation: Aerospace/MIL-spec high-temp PTFE (Gasoline/Nitro resistant)

Quick Change Holder: Yes

Compatible With: RC4 Timing System only!
